Just last week, I was helping my buddy build his new deck in the blazing midday heat. We’d lost track of time and realized we were nearing sunset with just the stairs left to complete. Rather than pack up the power tools and carry everything into his cluttered garage, I backed up my Ford F150 to the nearly built structure.
Using the Ford F150 power outlet in bed, we hooked up our saw and drill, efficiently finishing the build under the truck’s built-in LED lighting. That truck feature saved us time, hassle, and gave us a few more precious hours of daylight. It’s practical moments like these that really remind me of the convenience of the F150’s design.
Meet the Author
I’m a lifelong Ford F-series enthusiast hailing from Vancouver. I’m a seasoned gearhead who learned the insides out of my trucks the old-fashioned way: turning wrenches and making mistakes.
– Robert
The Importance of a Power Outlet in the Bed of a Ford F150
The Importance of a Power Outlet in the Bed of a Ford F150 is pivotal for multiple reasons. It offers convenience by allowing you to effortlessly power tools or devices while on the go. This saves time and effort as there is no need to search for an external power source or use extension cords.
In addition, it boosts productivity, enabling you to work efficiently and complete tasks more quickly.
The presence of a power outlet in the bed of a Ford F150 significantly enhances the functionality and versatility of the vehicle, making it an essential feature for any driver.
Pro-tip: It is advisable to consider investing in a surge protector to safeguard your devices and ensure a consistent and secure power supply.
Understanding the Different Power Outlet Options
A power outlet in the bed of a Ford F150 offers convenient access to electrical power for various needs. Here are some key points to consider.
1. Factory-installed Power Outlet
- Overview: The factory-installed power outlet is a feature provided by Ford in the bed of the F150.
- Benefits and limitations: The factory-installed power outlet provides a reliable power source for tools, equipment, and other electrical devices. However, it may have a limited amp rating and may not be suitable for high-powered equipment.
- Amp rating: Determine your power needs and choose the appropriate power outlet amp rating that can handle the electrical load without getting overloaded.
- Placement: Explore different bed locations to install the factory-installed power outlet, taking into consideration factors such as accessibility and protection from water or other elements.
2. Aftermarket Power Outlet Installation
Aftermarket power outlet installation for a Ford F150 involves several steps to ensure proper installation and functionality. Here is a list of steps to follow:
- Choose the appropriate location for the power outlet in the truck bed based on your needs.
- Gather the necessary tools and materials for the installation, including a power outlet kit.
- Disconnect the truck’s battery to prevent any electrical accidents during installation.
- Remove the truck bed liner if necessary to access the installation area.
- Drill a hole in the truck bed for the power outlet wiring and ensure it is properly sealed.
- Route the wiring from the power outlet to the truck’s battery, ensuring it is secure and protected.
- Connect the wiring to the truck’s battery, following the manufacturer’s instructions.
- Test the power outlet to ensure it is working correctly and provides the desired power output.
- Replace the truck bed liner and secure it back in place if it was removed.
Choosing the Right Power Outlet for Your Needs
When it comes to finding the perfect power outlet for your Ford F150 truck bed, it’s crucial to consider your specific needs. In this section, we’ll dive into the factors that matter most when choosing the right power outlet. From the amp rating to the ideal placement, we’ll explore what you need to know to make the most informed decision.
1. Power Outlet Amp Rating
When selecting a power outlet for your Ford F150, the amp rating is a crucial factor to consider.
It is important to assess your power needs and choose the appropriate amp rating for your intended usage. This will guarantee that the power outlet can handle the electrical load without any complications.
Remember to take into account the devices you plan on connecting and their power requirements. It is vital to choose a power outlet with an adequate amp rating to prevent overloading the circuit and potential damage.
Whether you decide on a factory-installed power outlet or an aftermarket installation, ensure that it satisfies your power requirements.
2. Power Outlet Placement
- Assess your needs: Determine where you require the power outlet placement in the bed of your Ford F150. Do you need it near the cab or at the tailgate?
- Consider accessibility: Ensure that the power outlet placement is easily accessible and convenient for your usage. Placing it near the tailgate may be more convenient for equipment or tools.
- Think about installation: Look for areas in the bed where it is feasible to place the power outlet without interfering with other components or causing any damage.
- Account for safety: Avoid placing the power outlet in areas prone to water exposure or where it may be easily damaged during cargo loading and unloading.
True story: John, an avid camper, opted for the power outlet placement near the tailgate of his Ford F150. This choice allowed him to easily power his portable table saw for his woodworking projects while enjoying the great outdoors. He found this placement to be both convenient and accessible, enhancing the convenience and efficiency of his camping trips.
You’re just a few steps away from transforming your Ford F150 into a mobile power station with our Installation and Wiring Guide!
Installation and Wiring Guide
In this handy guide, we’ll walk you through the process, giving you two options: a DIY installation or a professional installation.
Whether you prefer to roll up your sleeves and do it yourself or leave it to the experts, we’ll provide all the necessary insights and tips to help you make the right choice.
So, let’s dive in and get your truck powered up!
1. DIY Installation
DIY Installation of a Power Outlet in the Bed of a Ford F150
If you’re a handy person and want to install a power outlet in your Ford F150’s bed, here’s a step-by-step guide:
- Prepare the tools and materials needed for the DIY installation, such as wire strippers, electrical tape, and a power outlet kit.
- Locate a suitable spot in the bed for the power outlet. Consider accessibility and ensure it won’t interfere with any existing parts.
- Disconnect the vehicle’s battery to prevent any electrical accidents during the DIY installation.
- Drill a hole in the bed for the power outlet wiring as part of the DIY installation. Use a rubber grommet to protect the wiring from potential damage.
- Run the wiring from the DIY power outlet location to the vehicle’s battery. Ensure the wiring is secured and protected along the way.
- Connect the wiring to the power outlet and secure it in place, following the manufacturer’s instructions for the DIY installation.
- Reconnect the vehicle’s battery and test the power outlet to make sure it’s working correctly after the DIY installation.
- Tidy up the wiring and secure it properly as the final step of the DIY installation process.
Once you’ve successfully completed the DIY installation, you’ll have a convenient power outlet in the bed of your Ford F150 for various purposes, such as powering workbench tools or backup devices.
Bob, a DIY enthusiast, decided to perform a DIY installation of a power outlet in his Ford F150’s bed to power his portable table saw during construction projects. With the help of online tutorials and careful planning, John successfully completed the DIY installation and now enjoys the convenience of a custom power outlet in his truck. It’s not that hard, but you need to put in the time.
2. Professional Installation
Professional installation of a power outlet in the bed of a Ford F150 is a recommended choice.
- Expertise: Opting for professional installation guarantees that the power outlet is properly installed, eliminating any potential electrical issues.
- Efficiency: Skilled installers possess the knowledge and tools to efficiently complete the task, saving you time and effort.
- Safety: Professionals adhere to proper safety protocols, minimizing the risk of accidents or damage during the installation process.
- Warranty: Numerous professional installations include a warranty, providing peace of mind and protection against any future problems.
Consider hiring a trustworthy and experienced professional to ensure a successful installation of your power outlet.
Troubleshooting Common Issues
Having trouble with your Ford F150 power outlet in bed?
Don’t worry, we’ve got you covered!
1. Power Outlet Not Working
Ensure that the outlet is securely connected and check the fuse to see if it needs to be replaced.
2. Electrical Overload
Electrical overload is a common issue with power outlets in the bed of a Ford F150. To prevent this problem, follow these steps:
- Calculate the power requirements of the devices you plan to use with the power outlet.
- Ensure that the power outlet amp rating is sufficient to handle the total power load.
- Avoid connecting multiple high-power devices simultaneously.
- Use power strips or surge protectors with built-in overload protection.
- Regularly inspect the power outlet for any signs of damage or overheating.
- If you experience repeated electrical overload, consult a professional for further evaluation and potential upgrades.
Pro-tip: Ensure the functionality of your power outlet and prevent any potential electrical issues by regularly inspecting and maintaining it.
Some Facts About Ford F150 Power Outlet in Bed:

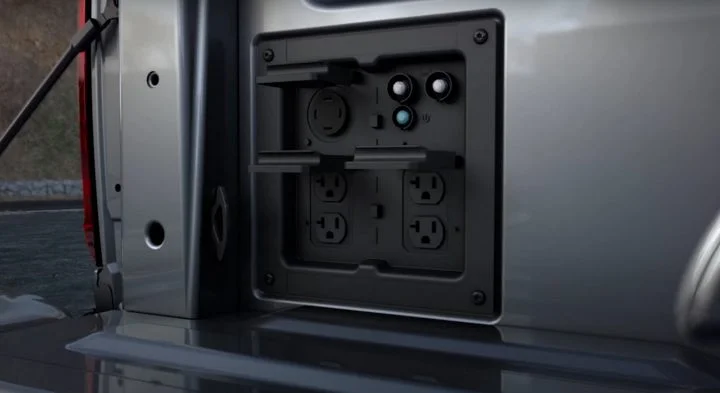

- ✅ The Ford F-150 Pro Power Onboard generator system provides 2.4 kilowatts or 7.2 kilowatts at 120 volts.
- ✅ With the outlets in the cargo bed wall, users can power household tools, appliances, and commercial tools.
- ✅ The Pro Power Onboard system eliminates the need for a separate generator and gas supply.
- ✅ The upcoming all-electric F-150 Lightning pickup will also feature the Pro Power Onboard system.
- ✅ The Pro Power Onboard system can serve as a backup power source for homes.
What is the Ford F-150 In Bed Outlet Pro Power feature?
The Ford F-150 In Bed Outlet Pro Power feature is a powerful onboard system that provides convenient access to electrical power in your truck bed. It allows you to power various electronic devices and tools directly from your truck.
How does the Pro Power Onboard system work?
The Pro Power Onboard system is a built-in power generator that utilizes the vehicle’s engine to generate electricity. It uses a 12-volt battery and an inverter to convert the DC power from the battery to AC power, which can then be used to power devices and tools through the bed outlet.
Can I use the Pro Power Onboard system when the vehicle is turned off?
No, the Pro Power Onboard system requires the vehicle’s engine to be running in order to generate power. It cannot operate when the vehicle is turned off.
How much power does the Pro Power Onboard system provide?
The Pro Power Onboard system is available in different power configurations. The 2021 Ford F-150 offers a maximum of 2.0 kilowatts (kW) of power, while the 2022 Ford F-150 Lightning provides up to 9.6 kW of power, depending on the chosen model.
What devices can I power with the Pro Power Onboard system?
The Pro Power Onboard system can power a wide range of devices and tools, such as power tools, air compressors, welding equipment, and even small appliances like televisions or refrigerators, as long as their power requirements are within the system’s capacity.
Can I use the Pro Power Onboard system to charge my electric vehicle?
Yes, you can use the Pro Power Onboard system to charge your electric vehicle. However, it is important to note that the system’s power output may vary depending on the vehicle model and the available charging options.
How many outlets does the Pro Power Onboard system have?
The number of power outlets available with the Pro Power Onboard system depends on the specific truck model and power configuration. The 2021 Ford F-150 offers multiple 120-volt and one 240-volt outlet, while the 2022 Ford F-150 Lightning provides additional outlet options.
Can I use the Pro Power Onboard system during a power outage?
Yes, the Pro Power Onboard system can be a helpful resource during a power outage. It can provide temporary power to essential devices and appliances, allowing you to stay connected and ensure a better experience during unexpected outages.
How long can the Pro Power Onboard system provide power?
The duration of power that the Pro Power Onboard system can provide depends on various factors, including the power draw of the connected devices and the capacity of the vehicle’s fuel tank. It is recommended to monitor the fuel level and manage power usage accordingly.
How do I access the Pro Power Onboard system in the Ford F-150?
To access the Pro Power Onboard system, look for the power button located in the bed area of the truck. Press the button to activate the power outlets and begin using the Pro Power Onboard system.
